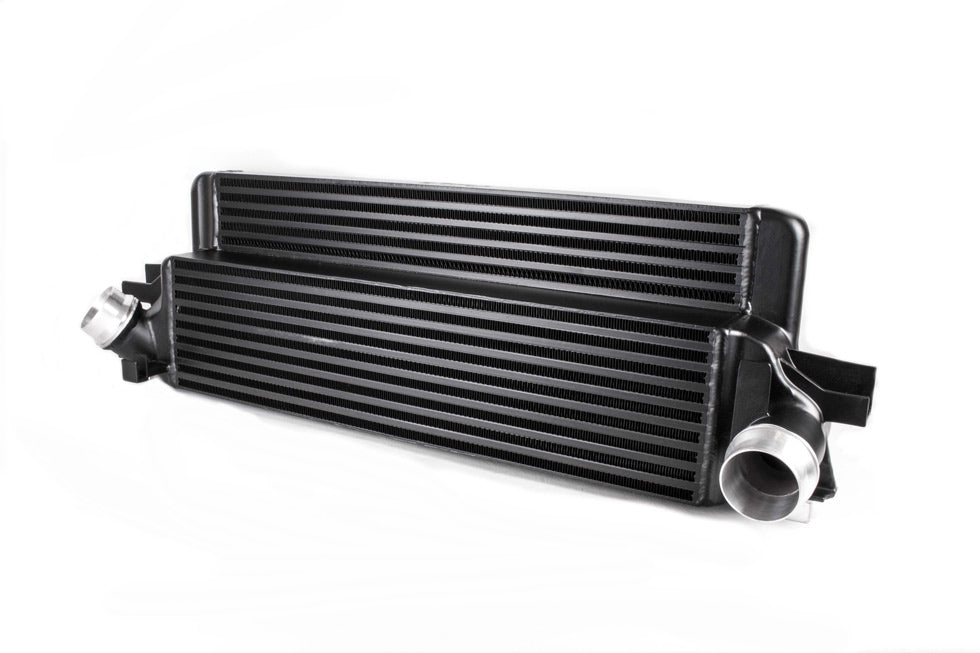

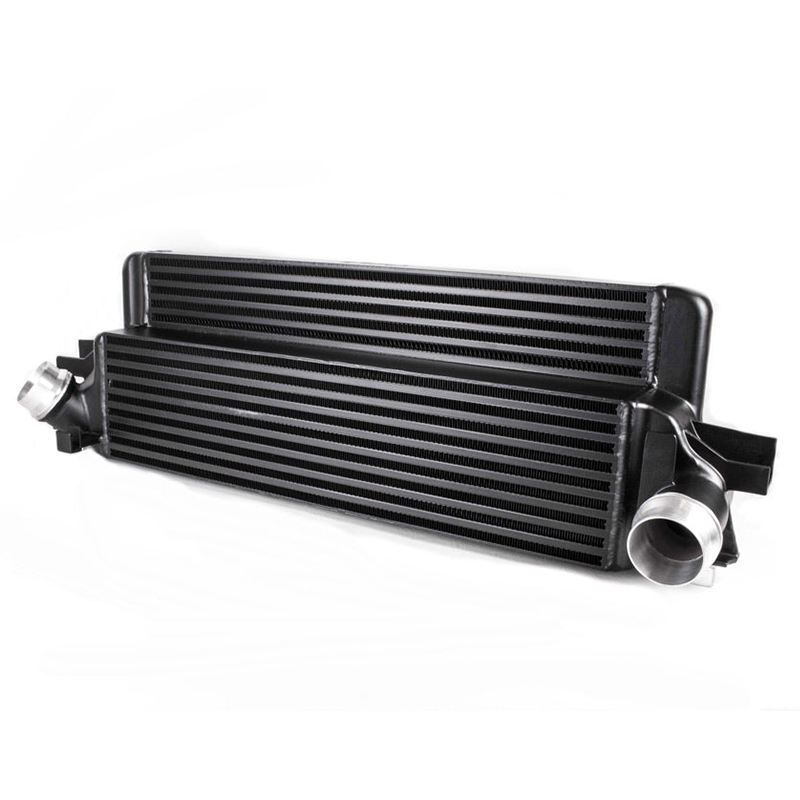

Wagner Competition Intercooler Kit MINI Cooper F54/F55/F56

The competition intercooler has the following core size (580mm x 231mm x 110mm [stepped] = 12.600cm³), providing a 53% larger frontal area and 52% more volume compared to the original intercooler. Wagner engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This Competition Intercooler core with turbulators weighs 9,2kg (20.28 lbs). Constructed of the highest quality Tube and Fin intercooler cores combined with cast aluminum optimized by CAD. Flow analyses and simulations were created to optimize the design for best possible Internal Airflow. This intercooler is the best choice when it comes to performance gains and low intake temperatures. A lot less pressure drop then OEM Intercooler. Anti-Corrosion protective Coating with perfect thermal heat dissipating character. Optimal cooling with clearly more power. Kit is ready for installation (plug & play), using the stock pluming. No cutting required. Fitment is easy, replacing the OEM intercooler. All of Wagner products undergo rigorous quality control.

Dimensions stock Intercooler:
585mm x150mm x 95mm
V=8,3 Liter
A=877,5 cm²

Dimensions WAGNERTUNING Intercooler:
580mm x 231mm x110mm /stepped
V=12,6 Liter
A=1340 cm²

Package:
1 Intercooler painted black
1 mounting Material
1 installation instruction
